Steel Carport Kits

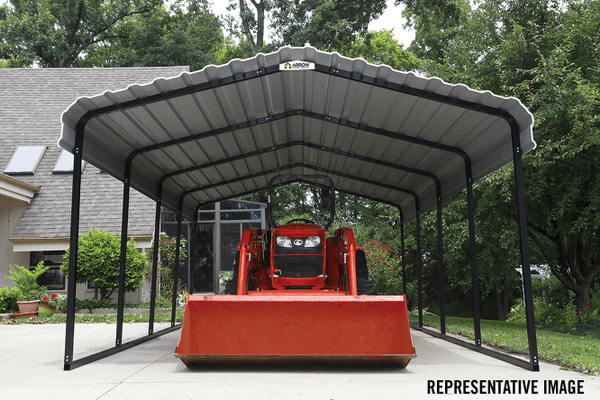

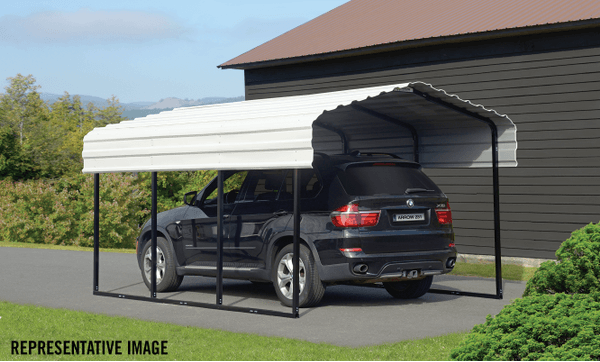

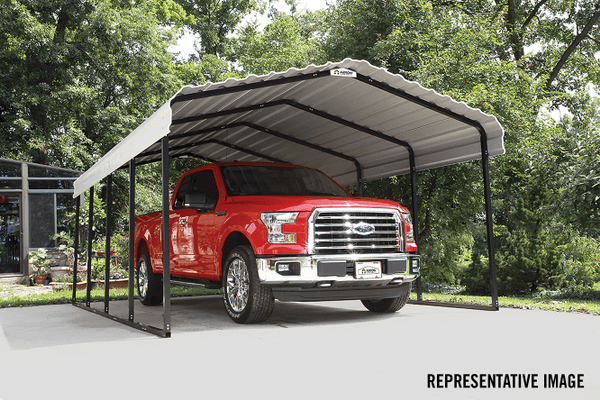

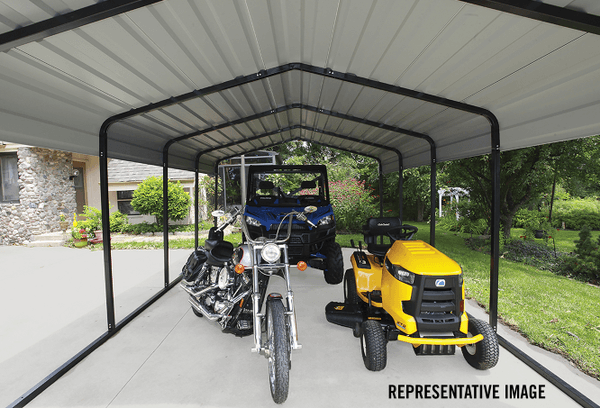

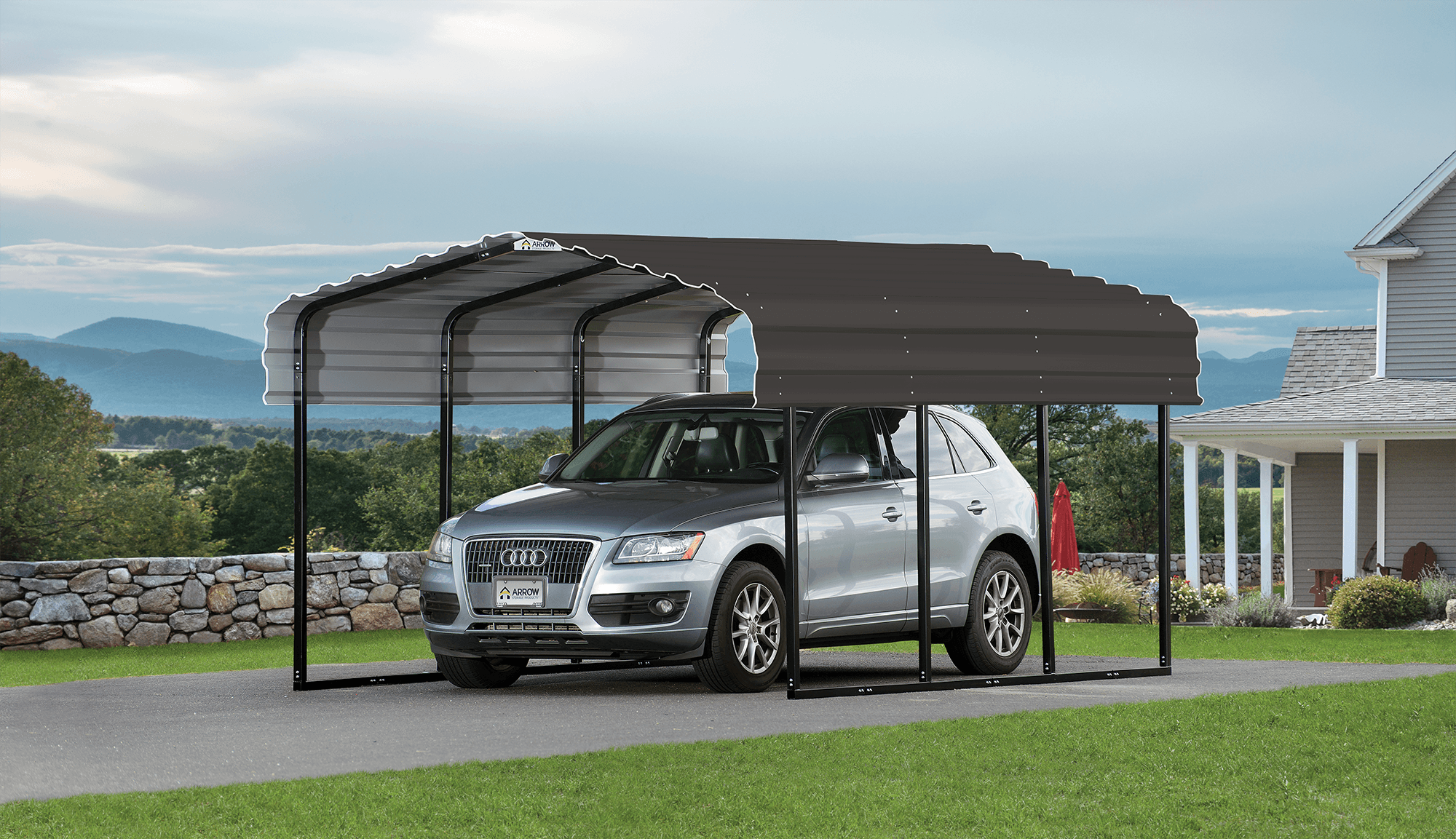

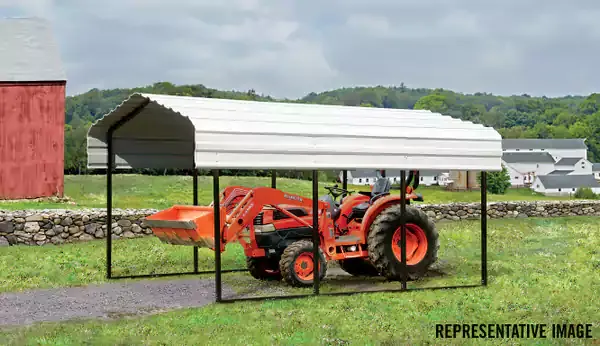

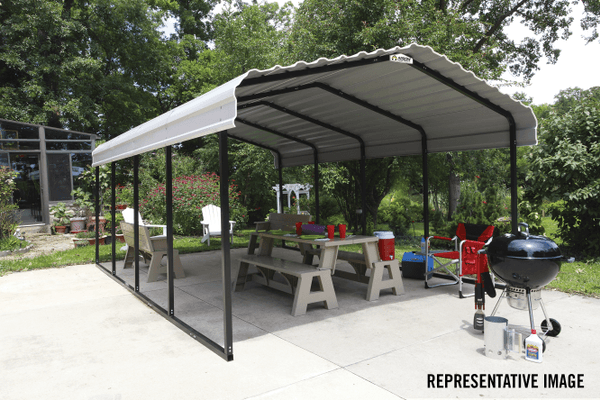

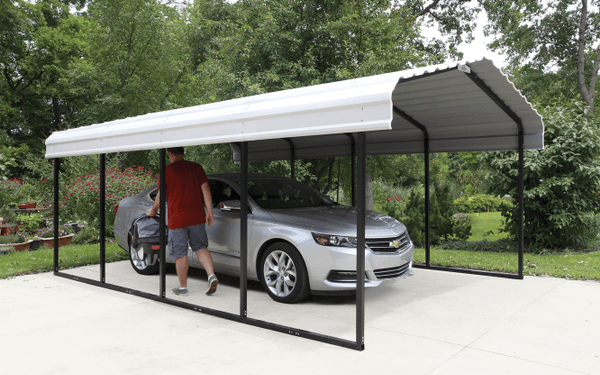

Arrow's all-steel Carport is a practical, all-weather shade and shelter solution. It can shade your vehicle, truck, ATV, outdoor equipment, rest areas, or picnic areas. In the off-season, it is also great for storing boats, picnic and outdoor furniture, and summer toys.
Each Arrow Carport is a wind and snow load rated Carport and ready to take on tough weather conditions and able to stand up to accumulated snow fall. The galvanized steel roof is made to protect against corrosion, rust and the elements and features an attractive Eggshell or Charcoal colored roof.
Easy to install, the Carport comes with slip-fit connections with pilot holes and self-drilling screws making this unit easy to build straight out of the box. The Carport is assembled on our tough all-steel, powder coated two in. tube frame, made to reinforce stability and strength in the structure. The premium powder coating provides corrosion and rust resistance.
Snow & Wind Rated
2" steel tubing with 15-gauge (1/8th inch) wall thickness delivers wind and snow load strength and stability. Premium black powder coat finish resists rust and corrosion. Rib spacing is 4.5 ft. / 1.3 m. Ready to withstand winter without any need to remove the snow.
Built To Last
Horizontal roof panels with 29-gauge painted galvanized steel for corrosion resistance and your choice of Charcoal or Eggshell colored roof panels. Never worry about stripping, repainting or rebuilding your wood carport again. Built for a long life in even the harshest conditions.
DIY Friendly
Slip-fit frame connections with pilot holes and self-drilling screws for easy assembly. Ready-to-build right out of the box. It comes with ground auger anchors (300 lbs pull strength) to secure it to the ground (10 for the 20x20 size and more for larger sizes). With two installers, this unit can easily be installed within one day. It is a great DIY project for the handy homeowner.
Benefits
HOW TO ORDER

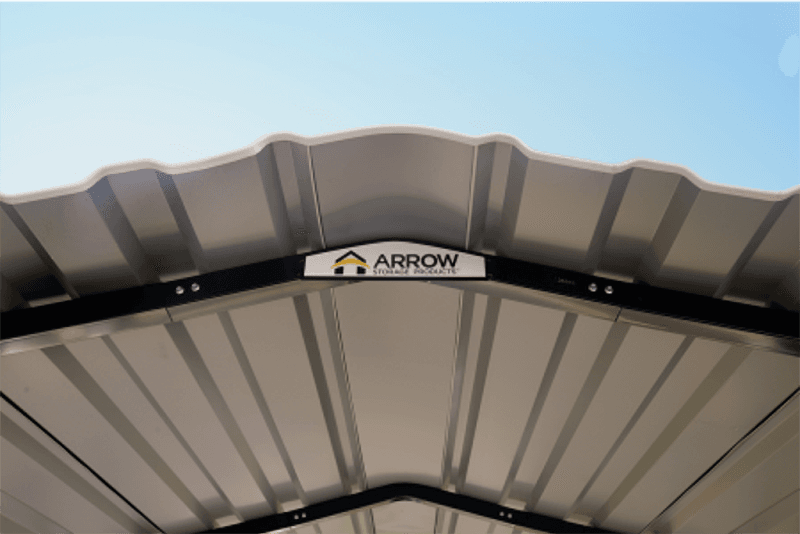

Roof Details

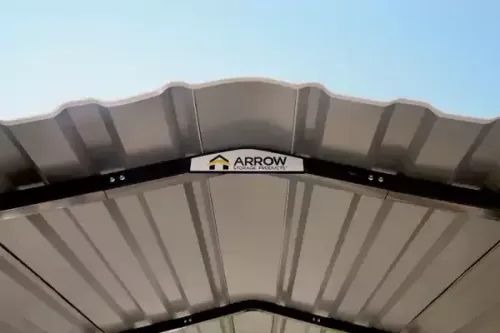

Robust Roof for Maximum Shade Protection
A heavy-duty, galvanized steel roof that's built to last - the Arrow Carport features a 29-gauge painted galvanized steel for corrosion resistance.
Rounded roof eaves off additional protection from the elements with a 12 in. overhang at the roof gables offers additional protection.

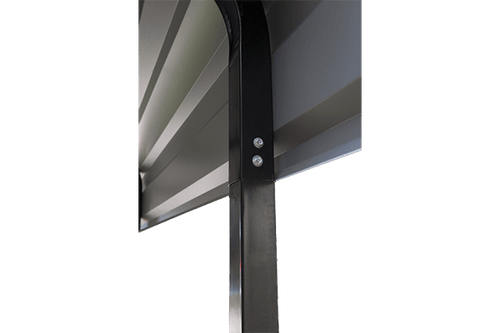

Frame Details
Strong Steel Frame

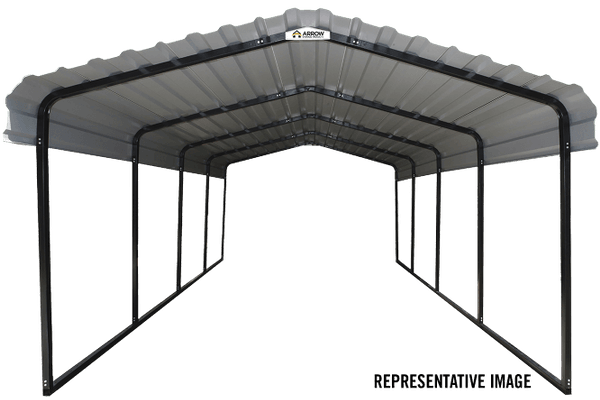

Featuring a 2 in. square tube frame, the Arrow Carport provides stability and strength to the unit, increasing it's wind and snow load capability.
Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly that's faster, more convenient right out of the box.
Weather
All-Weather Carport
An all-weather carport that will protect your vehicle or outdoor space all-year long: the Arrow Carport is built to take on even tough weather - winds up to 100 MPH, and a snow load of 35 PSF.

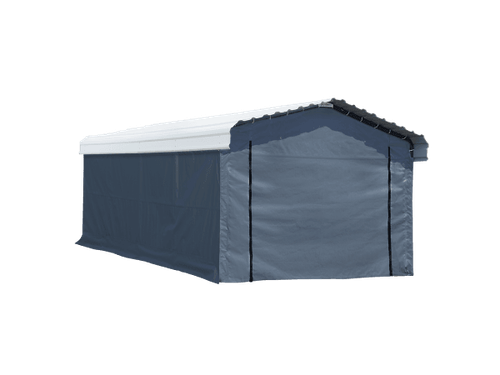

Winter Enclosure Kit
Convert your Carport into a fully enclosed structure with a durable, ripstop cover. The durable fabric material can attach quickly to the unit and be removed just as easily. The water resistant fabric will protect your items from inclement weather.

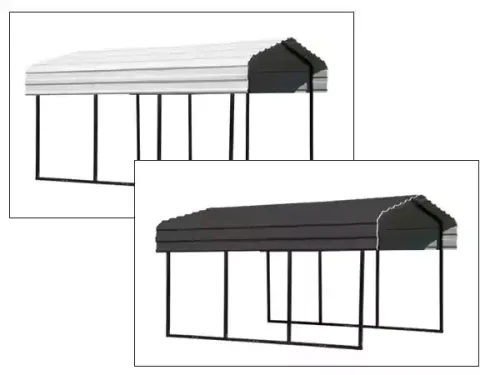

Options
Colors & Sizes Options

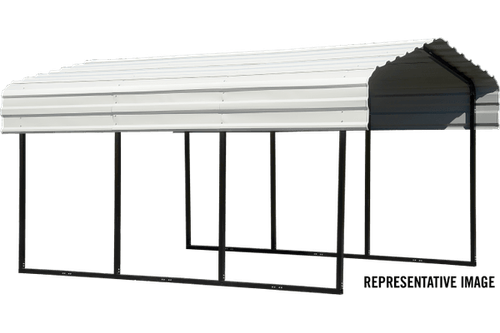

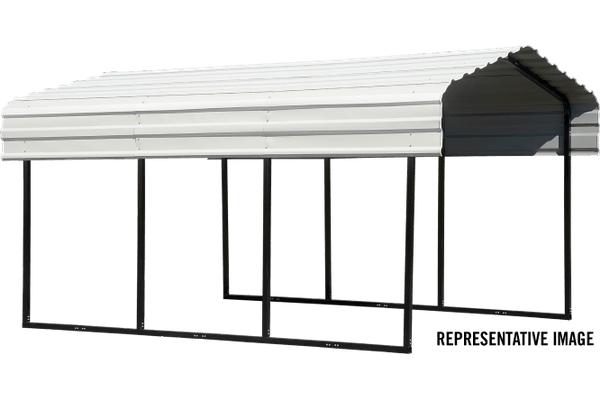

The Arrow steel carport comes in many different sizes. Roof in an attractive Eggshell or Charcoal finish, with a black powder coated steel frame.
YouTube
https://www.youtube.com/embed/1WuLmNaLz4w
A video showing easy it is to assemble a new Arrow Carport. Available in white and charcoal color options. Sizes 10x15x7, 10x20x7, 10x24x7, 10x29x7, 12x20x7, 12x24x7 and 12x29x7 available
YouTube
https://www.youtube.com/embed/M51JvCgvmUU
Promo video introducing the Arrow 20 foot wide carport. The extra wide carport can fit two cars side by side comfortably! It is available in 20x20, 20x24 and 20x29 sizes, eggshell white or charcoal gray colors and a black powder coated frame
Size | 10x15 | 10x20 | 12x20 | 10x24 | 12x24 | 10x29 | 12x29 |
SKU | CPH101507 | CPH102007 | CPH122007 | CPH102407 | CPH122407 | CPH102907 | CPH122907 |
Style | Peak | ||||||
Material | Galvanized Steel | ||||||
Color | Eggshell or Charcoal | ||||||
Storage Area (sq. ft.) | 148 | 191 | 234 | 234 | 287 | 277 | 340 |
Storage Volume (cu. ft.) | 1110 | 1435 | 1792 | 1760 | 2198 | 2085 | 2604 |
Assembled Exterior Width (in.) | 120 | 120 | 146 | 120 | 146 | 120 | 146 |
Assembled Exterior Depth (in.) | 183.25 | 237 | 237 | 290.75 | 290.75 | 344.5 | 344.5 |
Assembled Exterior Height (in.) | 98.4 | 102 | 98.4 | 102 | 98.4 | 102 | |
Assembled Interior Width (in.) | 116 | 142 | 116 | 142 | 116 | 142 | |
Assembled Interior Depth (in.) | 183.25 | 237 | 237 | 290.75 | 290.75 | 344.5 | 344.5 |
Assembled Interior Height (in.) | 96.4 | 100 | 96.4 | 100 | 96.4 | 100 | |
Door / Entrance Width Bottom (in.) | 116 | 142 | 116 | 142 | 116 | 142 | |
Door / Entrance Height Outside (in.) | 84 | ||||||
Wall Height (ft.) | 84 | ||||||
Wind Speed Rating | 100 | ||||||
Snow Load Rating | 35 PSF | ||||||
Assembly Required | Yes | ||||||
Warranty | 10 year limited | ||||||
